Характеристики

Applicable Industries: textile

Condition: New

Application: Winding Yarns

Automatic Grade: Automatic

Production Capacity: HIGH SPEED

Memory Capacity: Request

Voltage: 380V/220V, 380v/220v

Power: 550w

Dimension(L*W*H): L1454*W1262*H1700mm

Weight: 350kg

Warranty: 1 Year

After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas

Сертификация: ISO9001:2008 / CE

Name: winding machine

Material Capabilities: Textile Material

Product: Silk Yarn

Usage: Winding Reel System

Function: winding machine

spindle power: 120w

friction sticks: flat tube or conical cone

Color: White

Основная информация

Сертификация: ISO9001:2008 / CE

Оплата и доставка Условия

Packaging Details: Standard export cases

Supply Ability: 5 Set/Sets per Week

Характер продукции

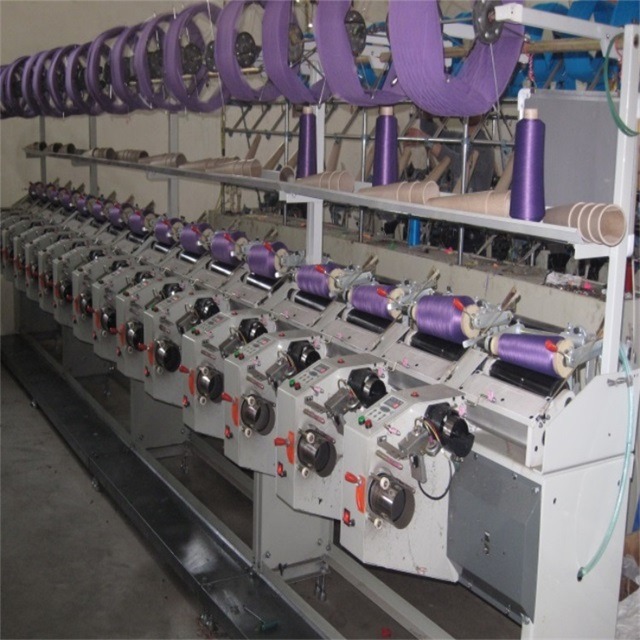

FHTDTK-A cone winding machine

Product description

Hank to cone winding machine is used to winding perfect yarn shape for nylon yarn, fancy yarn, polyester, nylon, wool yarn ,pp yarn, filament and many other special yarns. Slub catcher, clean traveller and Auto-waxing device are optional .The machine is hot sale in domestic and overseas.

The model is especially suitable for chemical fiber, yarn, rope skein such as state complex cylinder pipe, state. As the machines with computer control system; individual spindle control; oil automatically come on; edge device; anti- -stack; auto-stop of break yarn; Fixed-length control; Super feed wire; Slow -starting with adjustable; Yarn speed is adjustable; Yarn tension-controlled device and other advanced technologies, to ensure the high quality of the machine: Its characteristics: Across the line speed; A one -off form; even tension; forming beautiful.

Technical parameters

Product name	FHTDTK-A hank to cone winder
Number of spindles	24(6 spindles/group),48, 96 (Optional)
Spindle gauge	360 mm
Layout	Single side
Power Supply	220V/380V
Spindle power	120w/spindle
Winding speed	500m/min(Speed adjustable)
Max. yarn diameter	≤220mm
Friction roller specification	Flat bobbin Φ 80mm×220mm or cone Φ 80mm×220mm taper 3.5° (Optional)
Driving	Individual cintrol
Electronic Anti-Stack	Inverter control
Dimensions	L 2200 x W 820 x H 1100 mm ( 6 spindles)
Weight	205kg/group
Productivity	10kg/spindle/24h
Operation	48 spindles/a worker
